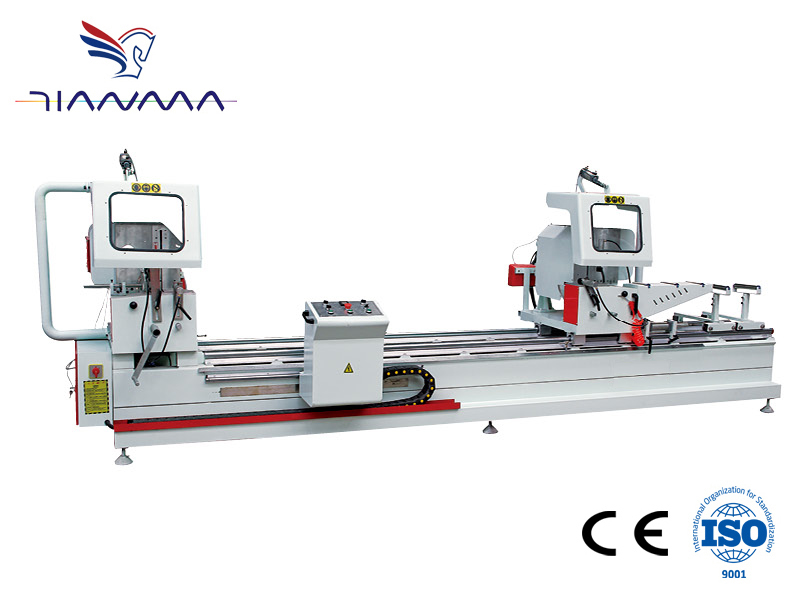

LJZ2-450×3700A　Double-head Straight (Corner Connector) Cutting Saw

The imported aluminum alloy special cutting saw blade ensures the cutting precision.
The high-precision spindle stabilizes the saw blade rotation.
Automatic opening and closing of the protective cover makes work safe and convenient.
The movable head adopts imported linear bearing motion pair with high working precision.
The follow-up material holder makes the profile positioning and clamping convenient and reliable.
Optional corner connector function for dual use.

Power supply: 380V 50Hz
Input power: 2.2 kw×2
Rotating speed: 2800rpm
Saw blade diameter: Φ450×4.4×Φ30×Z120
Air pressure: 0.5—0.8 Mpa
Air consumption: 200L/min
Cutting angle: 45° 90° 45°
Cutting length: Max 3700mm Min500mm
Cutting width: Max120mm
Cutting height: Max180mm
Feed speed: 0—3m/ min
Overall dimensions: 5100×1400×1550mm
